Semi-Automatic Unloader for Sterilized Packed Foods

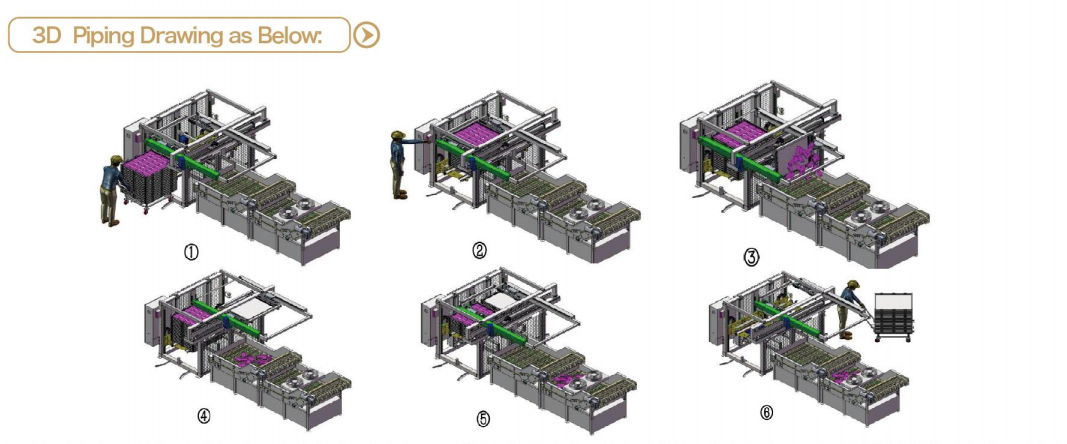

1. Introduction to the Semi-Automatic Unloader
- Designed for unloading packed foods after sterilization.
- Disassembles the whole stack of trays layer by layer using a manipulator.
- Turns the tray 180° to transfer products to the conveyor belt (bottom), completing the unloading process.

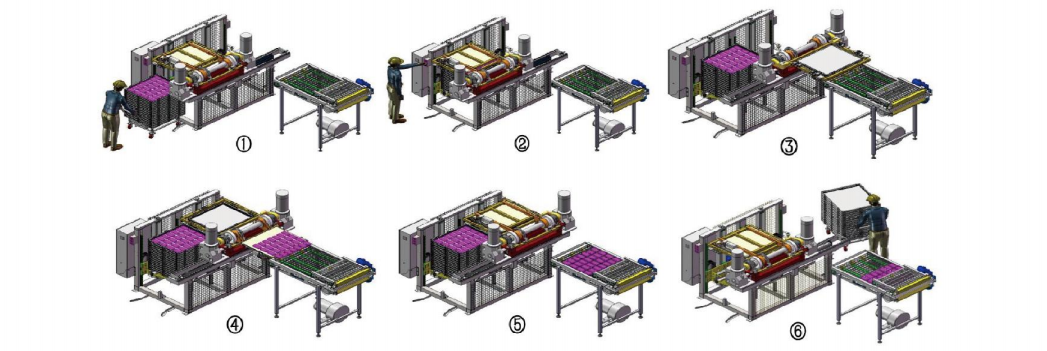

2. Automated Tray Handling
- Manipulator moves empty trays automatically.
- Stacks empty trays one by one on the other side.
- Pushes the whole stack of trays out using a trolley when ready.
Scope of Application
- Suitable for products that can be sterilized using sterilization trays.
- Ideal for products that do not require packaging.
Features:
1. Applicable to all kinds of shaped pouches;
2. Highly automatic. Except push trolley, the rest of action finished automatically;
3. Highly efficiency. The loading speed can reach 2-3 trays/min;
4. Simple structure, strong stability and low failure rate;
5. Flexible and small installation space.
|
Semi-Automatic Pouch Unloader |
||||||||
|
Model |
Suitable retort diameter |
Dimension（mm) |
Air pressure (Mpa) |
weight（kg) |
Install power (kw） |
Voltage (v) |
||
|
L |
W |
H |
||||||
|
RZ01-10 |
1000mm |
3300 |
2160 |
1880 |
0.8 |
1250 |
3 |
380 |
|
RZ01-12 |
1200mm |
3300 |
2260 |
1980 |
0.8 |
1350 |
3 |
380 |
|
RZ01-14 |
1400mm |
3500 |
2410 |
2150 |
0.8 |
1500 |
4 |
380 |
|
RZ01-15 |
1500mm |
3500 |
2460 |
2200 |
0.8 |
1700 |
4 |
380 |
